Wireless Gate Left Open Alert Transmitter Kit

£248.14
Current Stock:
Adding to cart… The item has been added
FREE Shipping anywhere in the UK
Satisfaction Guaranteed.
Secure Payments
Need help? Call Us: 01744 520 110 or email: Sales@thebarriers.co.uk

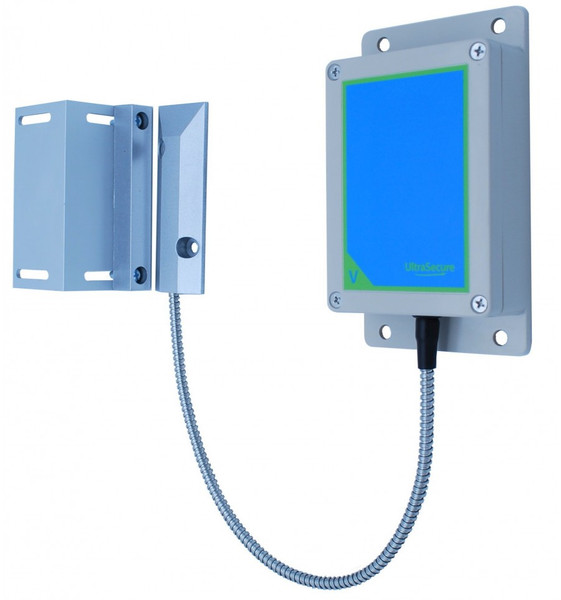

  • This Wireless Gate/Roller Shutter/Door Transmitter Kit is for use only with the Protect-800 Wireless Gate Open Alerts (our alerts that inform the owners that the gate, roller shutter or door has been left open).

The kit includes:

  • 1 x Magnetic Metal Gate/Door Contact.
  • 2 x Battery Transmitter Boards.
  • 1 x Weatherproof Mounting Box.
  • The two Battery powered Transmitter Boards are located inside a Weatherproof Box, the operating range back to any Protect 800 Receivers is 800 metres (line of sight), which equates to round 400 – 600 metres in most applications.
  •  The Transmitters are powered by a 3v CR123A Battery (supplied) which would last 12 – 18 months in most applications, the Receivers would notify you in a low battery situation.
  •  Connected to this Transmitter Box is a Wired Contact with an armoured protective sleeve, the Contact would be fitted to the Gate Post (or door frame or floor if used with door or roller shutter contact).
  •  The Magnet would be fitted to the Gate, Door or Roller Shutter Door, it is supplied with an optional right hand mounting bracket to aid installation.
  •  A Wireless signal will be transmitted to the relevant Receiver (or receivers) each time the Gate/Door is opened and closed.
  •  If in doubt, Please Contact Us to Discuss !!

kit Includes:

  • 2 x Protect 800 Transmitters inside a weatherproof Box with Battery.
  • 1 x Wired N/O & N/C Gate Contact Kit.

Specifications:

Transmitters:

  • Wireless Range: 800 metre (line of sight).
  • Power Supply: 1 x 3v Lithium CR123A Battery.
  • Battery Life: 12 – 18 months (most applications).
  • Size: 65 x 33 x 15 mm.
  • Activation Methods:
  • Wired Input: Yes (N/O or N/C Momentary Volt Free, when used as a circuit board).

Mounting Box:

  • Material: Plastic.
  • Weatherproof: IP65.
  • External Size: 150 (L) x 85 (W) x 34 (D) mm.
  • Internal Size: 106 (L) x 76 (W) x 28 (D) mm.
  • Label: V range.

Magnetic Contact:

  • Switch Type: Normally Open or Normally Closed.
  • Size of Switch: 105 x 37 x 10 mm.
  • Cable Length to Switch: 360 mm.
  • Cable Protection: Armoured.
  • Magnet Size: 105 x 15 x 15 mm.
  • Right Hand Bracket Size: 105 x 50 x 50 mm.
  • Use with: Gate, Door or Roller Shutter.
