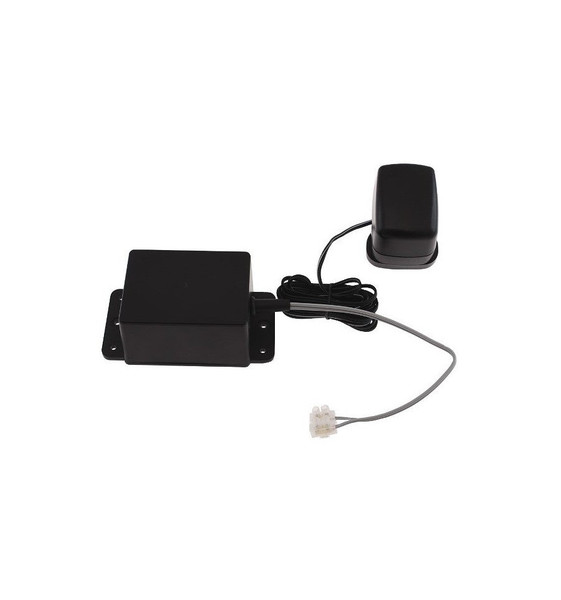

Timer Relay Kit

Timer Relay Kit

£145.66

Current Stock:

Quantity:

Adding to cart… The item has been added

FREE Shipping anywhere in the UK

Satisfaction Guaranteed.

Secure Payments

Need help? Call Us: 01744 520 110 or email: Sales@thebarriers.co.uk

0 – 60 Second or Minute Timer Relay Kit, for use in all types of Security & Safety Systems.
Designed to activate Sirens or Flashing Lights in all types of Security & Safety Systems for durations from 0 – 60 seconds or minutes (fully adjustable).
The Timer Relay is powered by the plug in transformer (supplied), with the supply for the chosen accessory connected into the standard terminal connector (rated up to 240v AC 10amp).

kit Includes:

1 x Timer Relay.
1 x Mounting Box & 4 x Plastic Rivets.
1 x Plug in 3-pin Transformer (2-pin available upon request).
1 x Plastic Cable Connector.

Specifications:

Input: Plug in 3-pin Transformer (2-pin available upon request).
Transformer Voltage: 220v AC Input & 12v DC Output.
Output Rating: Up to 240v 10 amps AC or 24v DC.
Timer Relay Duration: 0 – 60 Seconds/Minutes (adjustable).
Mounting Box Material: Plastic.
Mounting Box Size:
Base Size: 115 (L) x 65 (W) mm.
Internal Dimensions: 75 (L) x 60 (W) x 40 (D) mm.
